PESD3V3L4UF - Low capacitance unidirectional quadruple ESD protection diode arrays

NXP

📥 Download Datasheet

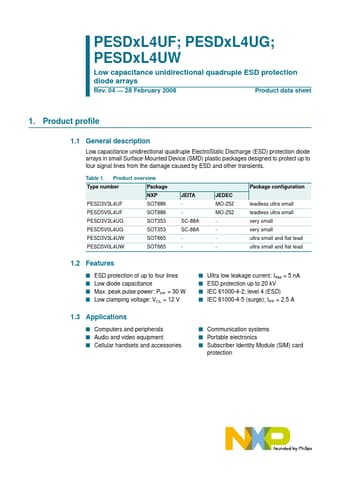

PESD3V3L4UF Datasheet Preview — Preview of PESD3V3L4UF PDF

Datasheet Details

Part number: PESD3V3L4UF
Manufacturer: NXP ↗
File Size: 100.93 KB
Datasheet: PESD3V3L4UF-NXP.pdf
Description: Low capacitance unidirectional quadruple ESD protection diode arrays

PESD3V3L4UF Product details

Description

Low capacitance unidirectional quadruple ElectroStatic Discharge (ESD) protection diode arrays in small Surface-Mounted Device (SMD) plastic packages designed to protect up to four signal lines from the damage caused by ESD and other transients..

Features

I ESD protection of up to four lines I Low diode capacitance I Max. peak pulse power: PPP = 30 W I Low clamping voltage: VCL = 12 V I Ultra low leakage current: IRM = 5 nA I ESD protection up to 20 kV I IEC 61000-4-2; level 4 (ESD) I IEC 61000-4-5 (surge); IPP = 2.5 A 1.3.
