PESD3V3L4UW

Low capacitance quadruple ESD protection array

PESD3V3L4UW Features

* I ESD protection of up to four lines I Low diode capacitance I Max. peak pulse power: PPP = 30 W I Low clamping voltage: VCL = 12 V I Ultra low leakage current: IRM = 5 nA I ESD protection up to 20 kV I IEC 61000-4-2; level 4 (ESD) I IEC 61000-4-5 (surge); IPP = 2.5 A 1.3 Applications I Computers

PESD3V3L4UW General Description

Low capacitance unidirectional quadruple ElectroStatic Discharge (ESD) protection diode arrays in small Surface-Mounted Device (SMD) plastic packages designed to protect up to four signal lines from the damage caused by ESD and other transients. Table 1. Product overview Type number Package NXP .

PESD3V3L4UW Datasheet (100.93 KB)

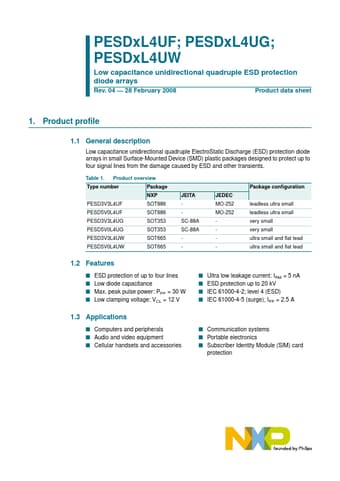

Preview of PESD3V3L4UW PDF

Datasheet Details

Part number:

PESD3V3L4UW

Manufacturer:

NXP ↗

File Size:

100.93 KB

Description:

Low capacitance quadruple esd protection array.
PESDxL4UF; PESDxL4UG; PESDxL4UW Low capacitance unidirectional quadruple ESD protection diode arrays Rev. 04

* 28 February 2008 Product da.
