PESD3V3S1BA-N ESD Protection Diode

PESD3V3S1BA-N Description

».

PESD3V3S1BA-N Features

* 100Watts peak pulse power (tp =8/20μs)
* Bidirectional configurations
* Solid-state silicon-avalanche technology
* Low clamping voltage
* Low leakage current
* IEC 61000-4-2 ±25kV contact ±25kV air
* IEC 61000-4-4 (EFT) 40A(5/50ns)
* IEC 61000-4-5 (Lightning) 10A(8/

PESD3V3S1BA-N Applications

* Microprocessor based equipment
* Personal Digital Assistants (PDA’s)
* Notebooks, Desktops, and Servers
* Portable Instrumentation
* Pagers Peripherals »Mechanical Data
* SOD523 package
* Molding compound flammability rating: UL 94V-0
* Packaging: Tape and Reel

📥 Download Datasheet

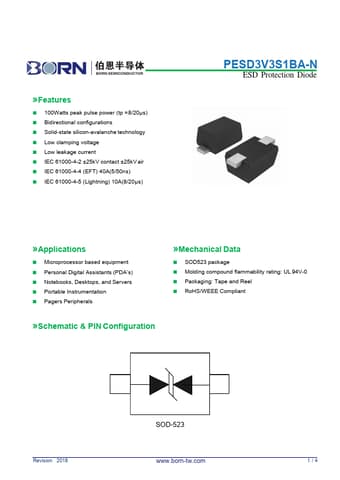

Preview of PESD3V3S1BA-N PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PESD3V3S1BA-N
Manufacturer
BORN
File Size
702.85 KB
Datasheet
PESD3V3S1BA-N-BORN.pdf
Description
ESD Protection Diode
