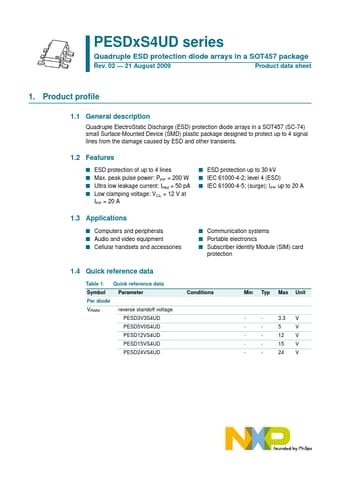

Additional preview pages of the PESD3V3S4UD datasheet.

Product details

Description

Quadruple ElectroStatic Discharge (ESD) protection diode arrays in a SOT457 (SC-74) small Surface-Mounted Device (SMD) plastic package designed to protect up to 4 signal lines from the damage caused by ESD and other transients.

Features

I ESD protection of up to 4 lines I Max. peak pulse power: PPP = 200 W I Ultra low leakage current: IRM = 50 pA I Low clamping voltage: VCL = 12 V at IPP = 20 A I ESD protection up to 30 kV I IEC 61000-4-2; level 4 (ESD) I IEC 61000-4-5; (surge); IPP up to 20 A 1.3.
