PESD3V3S1UB, PESD5V0S1UB (PESDxS1UB) ESD PROTECTION DIODES IN SOD 523 PACKAGE

PESD3V3S1UB Description

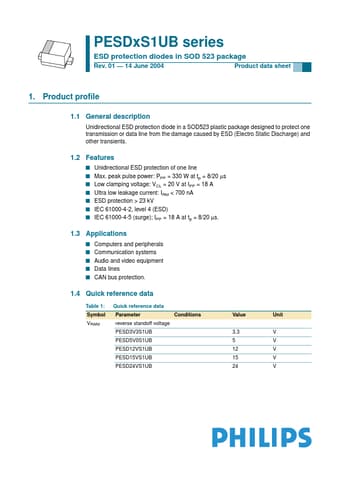

www.DataSheet4U.com PESDxS1UB series ESD protection diodes in SOD 523 package Rev.01 * 14 June 2004 Product data sheet 1.Product profile 1..
Unidirectional ESD protection diode in a SOD523 plastic package designed to protect one transmission or data line from the damage caused by ESD (Elect.

PESD3V3S1UB Features

* s s s s s s s Unidirectional ESD protection of one line Max. peak pulse power: PPP = 330 W at tp = 8/20 µs Low clamping voltage: VCL = 20 V at IPP = 18 A Ultra low leakage current: IRM < 700 nA ESD protection > 23 kV IEC 61000-4-2, level 4 (ESD) IEC 61000-4-5 (surge); IPP = 18 A at tp = 8/20 µs. 1.

PESD3V3S1UB Applications

* s s s s s Computers and peripherals Communication systems Audio and video equipment Data lines CAN bus protection. 1.4 Quick reference data Table 1: Symbol VRWM Quick reference data Parameter reverse standoff voltage PESD3V3S1UB PESD5V0S1UB PESD12VS1UB PESD15VS1UB PESD24VS1UB 3.3 5 12 15 24 V V V V
