PESD3V3L4BHC Datasheet, Array, nexperia

PESD3V3L4BHC Features

  • Array
  • Bidirectional ESD protection of up to 4 lines
  • Very high surge robustness; IPP = 6 A for 8/20 µs pulse
  • Very low clamping voltage: VCL = 7.3 V typ. for 6 A 8

PDF File Details

Part number:

PESD3V3L4BHC

Manufacturer:

nexperia ↗

File Size:

278.12kb

Download:

📄 Datasheet

Description:

4-fold bidirectional esd protection array. 4-fold bidirectional ElectroStatic Discharge (ESD) protection array designed to protect up to four lines from the damage caused by ES

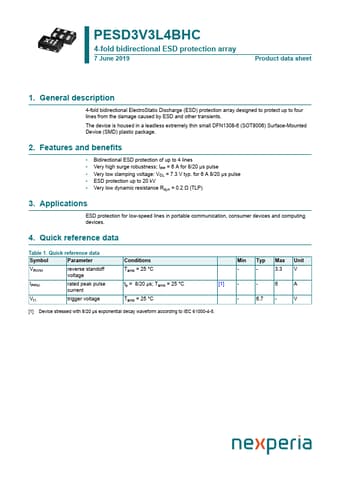

Datasheet Preview: PESD3V3L4BHC 📥 Download PDF (278.12kb)
Page 2 of PESD3V3L4BHC Page 3 of PESD3V3L4BHC

PESD3V3L4BHC Application

  • Applications ESD protection for low-speed lines in portable communication, consumer devices and computing devices. 4. Quick reference data Table 1
