PESD3V3C1UBSF Very low capacitance unidirectional ESD protection diode

PESD3V3C1UBSF Description

PESD3V3C1UBSF Very low capacitance unidirectional ESD protection diode 3 July 2025 Short data sheet 1.General .
Extremely low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS protection family.

PESD3V3C1UBSF Features

* Unidirectional ESD protection of one line
* VRWM = 3.3 V device
* IEC 61000-4-5 (surge): IPP = 10 A peak pulse (average measured)
* IEC 61000-4-4 robust up to 56 A into a 50 Ohm termination (2.8 kV)
* Very low diode capacitance Cd = 0.58 pF typical

PESD3V3C1UBSF Applications

* Cellular handsets and accessories
* Portable electronics
* Communication systems
* Computers and peripherals
* USB2, USB3.2 and HDMI2.0 data lines 4. Quick reference data Table 1. Quick reference data Symbol Parameter VRWM reverse standoff voltage Cd

📥 Download Datasheet

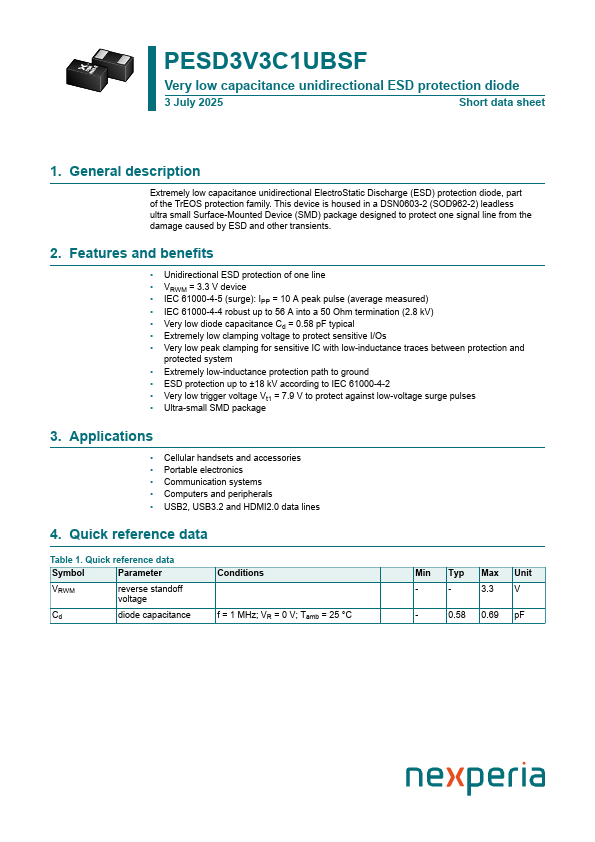

Preview of PESD3V3C1UBSF PDF

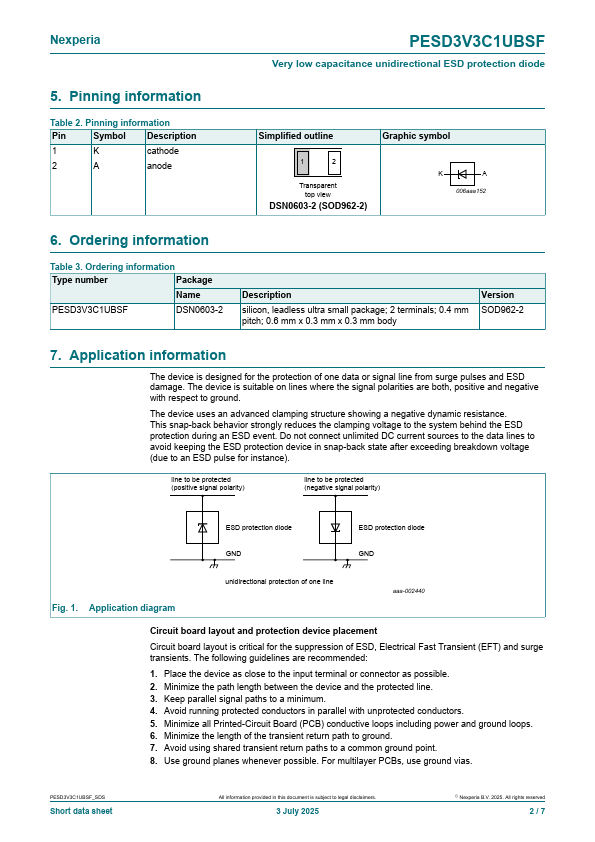

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PESD3V3C1UBSF
Manufacturer
nexperia ↗
File Size
148.74 KB
Datasheet
PESD3V3C1UBSF-nexperia.pdf
Description
Very low capacitance unidirectional ESD protection diode
