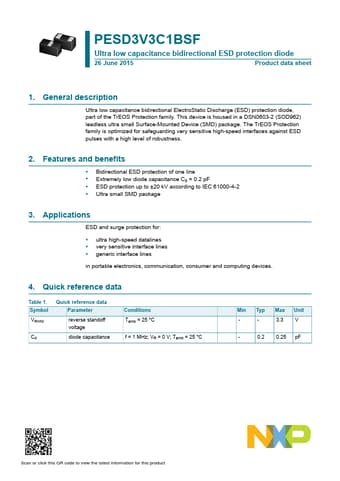

PESD3V3C1BSF Datasheet, Diode, NXP

PESD3V3C1BSF Features

• Diode
• Bidirectional ESD protection of one line
• Extremely low diode capacitance Cd = 0.2 pF
• ESD protection up to ±20 kV according to IEC 61000-4-2
• Ultra

PDF File Details

Part number:

PESD3V3C1BSF

Manufacturer:

NXP ↗

File Size:

180.27kb

Download:

📄 Datasheet

Description:

Ultra low capacitance bidirectional esd protection diode. Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS Protection family. This device

PESD3V3C1BSF Application

• Applications ESD and surge protection for:
• ultra high-speed datalines
• very sensitive interface lines
• generic interface
