L2SC3356LT1 - High-Frequency Amplifier Transistor

Name: L2SC3356LT1
SKU: L2SC3356LT1-622865

Leshan Radio Company

📥 Download Datasheet

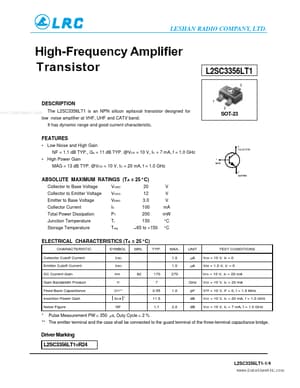

L2SC3356LT1 Datasheet Preview — Preview of L2SC3356LT1 PDF

Datasheet Details

Part number	L2SC3356LT1
Manufacturer	Leshan Radio Company
File Size	166.32 KB
Description	High-Frequency Amplifier Transistor
Datasheet	L2SC3356LT1_LeshanRadioCompany.pdf

L2SC3356LT1 Product details

Description

www.DataSheet4U.com 1 2 The L2SC3356LT1 is an NPN silicon epitaxial transistor designed for It has dynamic range and good current characteristic.low noise amplifier at VHF, UHF and CATV band.SOT-23

Features

Low Noise and High Gain NF = 1.1 dB TYP. , Ga = 11 dB TYP. @VCE = 10 V, IC = 7 mA, f = 1.0 GHz.
High Power Gain MAG = 13 dB TYP. @VCE = 10 V, IC = 20 mA, f = 1.0 GHz.
