LT1190 - Ultra High Speed Operational Amplifier

Product Overview

Linear Technology

📥 Download Datasheet

LT1190 Ultra High Speed Operational Amplifier by Linear Technology - Datasheet Preview — Datasheet preview – LT1190

Datasheet Details

Part number	LT1190
Manufacturer	Linear Technology
File Size	253.48 KB
Description	Ultra High Speed Operational Amplifier
Datasheet	LT1190 Datasheet
Note	This datasheet PDF includes multiple part numbers: LT1190, LT1. Please refer to the document for exact specifications by model.

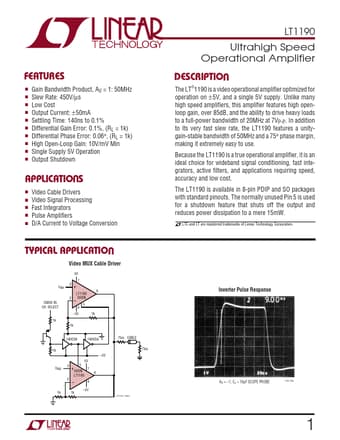

Additional preview pages of the LT1190 datasheet.

Product details

Features

s Gain Bandwidth Product, AV = 1: 50MHz s Slew Rate: 450V/µs s Low Cost s Output Current: ±50mA s Settling Time: 140ns to 0.1% s Differential Gain Error: 0.1%, (RL = 1k) s Differential Phase Error: 0.06°, (RL = 1k) s High Open-Loop Gain: 10V/mV Min s Single Supply 5V Operation s Output Shutdown U.
