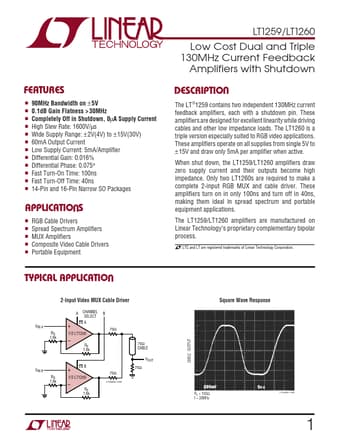

LT1259/LT1260 Low Cost Dual and Triple 130MHz Current Feedback Amplifiers with Shutdown FEATURES s s s s s s s s s s s s DESCRIPTIO 90MHz Bandwidth on ± 5V 0.1dB Gain Flatness > 30MHz Completely Off in Shutdown, 0µA Supply Current High Slew Rate: 1600V/µs Wide Supply Range: ± 2V(4V) to ± 15V(30V) 60mA Output Current Low Supply Current: 5mA/Amplifier Differential Gain: 0.016% Differential Phase: 0.075° Fast Turn-On Time: 100ns Fast Turn-Off Time: 40ns 14-Pin and 16-Pin Narrow SO Packages The LT ®1259 contains two independent 130MHz current feedback amplifiers, each with a shutdown pin. These amplifiers are designed for excellent linearity while driving cables and other low impedance loads. The LT1260 is a triple version especially suited to RGB video applications.
