LT3572, Dual Full-Bridge Piezo Driver

LT3572 Dual Full-Bridge Piezo Driver with 900mA Boost Converter www.DataSheet4U.com .
The LT®3572 is a highly integrated dual Piezo motor driver capable of driving two Piezo motors at up to 40V from a 5V supply.

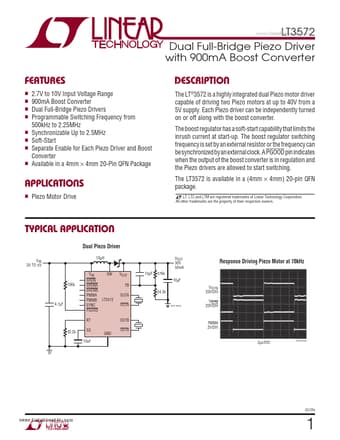

datasheet Preview Page 1 from Datasheet4u.com

LT3572_LinearTechnology.pdf

LT3572 Datasheet Preview — Preview of LT3572 PDF

Datasheet Details

Part number:

LT3572

Manufacturer:

Linear Technology

File Size:

181.01 KB

Description:

Dual Full-Bridge Piezo Driver

Applications

* Piezo Motor Drive TYPICAL APPLICATION Dual Piezo Driver VIN 3V TO 5V 10μH VOUT 30V 50mA SW VOUT FB OUTA LT3572 OUTA 3572 TA01a Response Driving Piezo Motor at 70kHz 100k 4.7μF VIN SHDN SHDNA SHDNB PWMA PWMB SYNC PGOOD RT 15pF 576k 10μF 24.3k VOUTA 20V/DIV VOUTA 20V/DIV OUTB GND OUTB
