LTC1660 Datasheet - Linear Technology

LTC1660 Micropower Octal 8-Bit and 10-Bit DACs

LTC1665/LTC1660 Micropower Octal 8-Bit and 10-Bit DACs DESCRIPTIO The 8-bit LTC®1665 and 10-bit LTC1660 integrate eight accurate, serially addressable digital-to-analog converters (DACs) in tiny 16-pin narrow SSOP packages. Each buffered DAC draws just 56µA total supply current, yet is capable of supplying DC output currents in excess of 5mA and reliably driving capacitive loads to 1000pF. Sleep mode further reduces total supply current to 1µA. Linear Technology’s proprietary, inherently monoton.

LTC1660 Features

* s s s s s s s Tiny: 8 DACs in the Board Space of an SO-8 Micropower: 56µA per DAC Plus 1µA Sleep Mode for Extended Battery Life Pin Compatible 8-Bit LTC1665 and 10-Bit LTC1660 Wide 2.7V to 5.5V Supply Range Rail-to-Rail Voltage Outputs Drive 1000pF Reference Range Includes Supply for Ratiometric

LTC1660_LinearTechnology.pdf

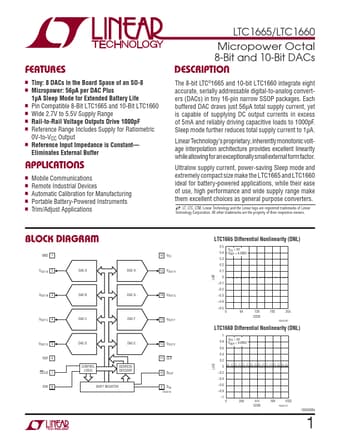

Preview of LTC1660 PDF
LTC1660 Datasheet Preview Page 2 LTC1660 Datasheet Preview Page 3

Datasheet Details

Part number:

LTC1660

Manufacturer:

Linear Technology

File Size:

223.43 KB

Description:

Micropower octal 8-bit and 10-bit dacs.
