LTC1661

Micropower Dual 10-Bit DAC

Linear Technology

LTC1661 Features

* n Tiny: Two 10-Bit DACs in an 8-Lead MSOP

* Half the Board Space of an SO-8 n Micropower: 60µA per DAC Sleep Mode: 1µA for Extended Battery Life n Rail-to-Rail Voltage Outputs Drive 1000pF n Wide 2.7V to 5.5V Supply Range n Double Buffered for Independent or Simultaneous DAC Updates n Referen

LTC1661 General Description

The LTC®1661 integrates two accurate, serially addressable, 10-bit digital-to-analog converters (DACs) in a single tiny MS8 package. Each buffered DAC draws just 60µA total supply current, yet is capable of supplying DC output currents in excess of 5mA and reliably driving capacitive loads up to 100.

LTC1661 Datasheet (239.10 KB)

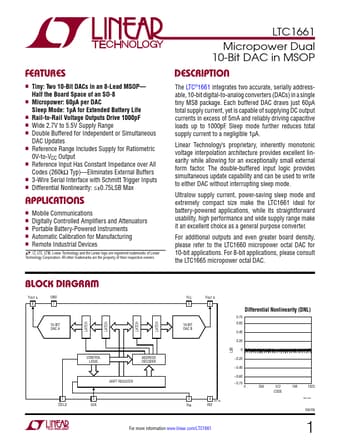

LTC1661 Datasheet Preview — Preview of LTC1661 PDF

Datasheet Details

Part number:

LTC1661

Manufacturer:

Linear Technology

File Size:

239.10 KB

Description:

Micropower dual 10-bit dac.
