LTC1664

Micropower Quad 10-Bit DAC

LTC1664 Features

* n Tiny: 4 DACs in the Board Space of an SO-8 n Micropower: 59µA per DAC Plus 1µA Sleep Mode for Extended Battery Life n Wide 2.7V to 5.5V Supply Range n Rail-to-Rail Voltage Outputs Drive 1000pF n Reference Range Includes Supply for Ratiometric 0V to VCC Output n Reference Input Impedance is C

LTC1664 General Description

The LTC®1664 integrates four accurate, serially addressable 10-bit digital-to-analog converters (DACs) in a tiny 16-pin narrow SSOP package. Each buffered DAC draws just 59µA total supply current, yet is capable of supplying DC output currents in excess of 5mA and reliably driving capacitive loads o.

LTC1664 Datasheet (213.47 KB)

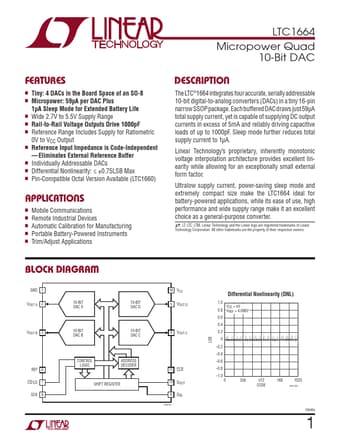

Preview of LTC1664 PDF

Datasheet Details

Part number:

LTC1664

Manufacturer:

Linear Technology

File Size:

213.47 KB

Description:

Micropower quad 10-bit dac.
