LTC1858

100ksps SoftSpan A/D Converters

LTC1858 Features

* n Sample Rate: 100ksps n 8-Channel Multiplexer with ±25V Protection n Single 5V Supply n Software-Programmable Input Ranges: n 0V to 5V, 0V to 10V, ±5V or ±10V n Single-Ended or Differential n ±3LSB INL for the LTC1859, ±1.5LSB INL for the LTC1858, ±1LSB INL for the LTC1857 n Power Dissi

LTC1858 General Description

The LTC®1857/LTC1858/LTC1859 are 8-channel, low power, 12-/14-/16-bit, 100ksps, analog-to-digital converters (ADCs). These SoftSpan™ ADCs can be softwareprogrammed for 0V to 5V, 0V to 10V, ±5V or ±10V input spans and operate from a single 5V supply. The 8‑channel multiplexer can be programmed for si.

LTC1858 Datasheet (384.02 KB)

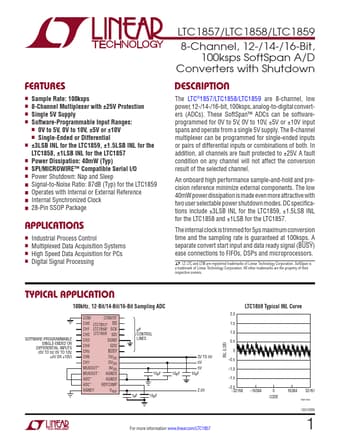

Preview of LTC1858 PDF

Datasheet Details

Part number:

LTC1858

Manufacturer:

Linear Technology

File Size:

384.02 KB

Description:

100ksps softspan a/d converters.
