LTC2299 80Msps Low Power 3V ADC

Linear Technology

LTC2299 Description

LTC2299 Features

* Integrated Dual 14-Bit ADCs
* Sample Rate: 80Msps
* Single 3V Supply (2.7V to 3.4V)
* Low Power: 444mW
* 73dB SNR at 70MHz Input
* 90dB SFDR at 70MHz Input
* 110dB Channel Isolation at 100MHz
* Multiplexed or Separate Data Bus
* Flexible Input: 1VP-P to 2VP-P Ra

LTC2299 Applications

* with AC performance that includes 73dB SNR and 90dB SFDR for signals well beyond the Nyquist frequency. DC specs include ±1.2LSB INL (typ), ±0.5LSB DNL (typ) and ±5LSB INL, ±1LSB DNL over temperature. The transition noise is a low 1.2LSBRMS. A single 3V supply allows low power operation. A separate

📥 Download Datasheet

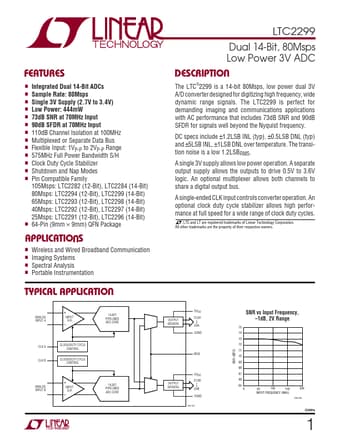

LTC2299 Datasheet Preview — Preview of LTC2299 PDF

Datasheet Details

Part number: LTC2299
Manufacturer: Linear Technology
File Size: 713.12 KB
Datasheet: LTC2299_LinearTechnology.pdf
Description: 80Msps Low Power 3V ADC
