LTC2344-16

400ksps/ch Differential SoftSpan ADC

LTC2344-16 Features

* Quad, 16-Bit, 400ksps/ch Differential SoftSpan ADC with Wide Input Common Mode Range DESCRIPTION nn 400ksps per Channel Throughput nn Four Simultaneous Sampling Channels nn ±1.25LSB INL (Maximum) nn Guaranteed 16-Bit, No Missing Codes nn Differential, Wide Common Mode Range Inputs nn Per-Channel S

LTC2344-16 General Description

nn 400ksps per Channel Throughput nn Four Simultaneous Sampling Channels nn ±1.25LSB INL (Maximum) nn Guaranteed 16-Bit, No Missing Codes nn Differential, Wide Common Mode Range Inputs nn Per-Channel SoftSpan Input Ranges: ±4.096V, 0V to 4.096V, ±2.048V, 0V to 2.048V ±5V, 0V to 5V, ±2.5V, 0V to 2.5.

LTC2344-16 Datasheet (1.41 MB)

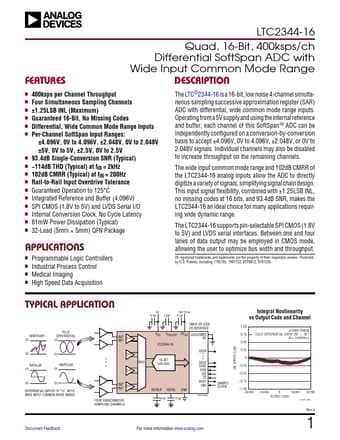

Preview of LTC2344-16 PDF

Datasheet Details

Part number:

LTC2344-16

Manufacturer:

Linear Technology

File Size:

1.41 MB

Description:

400ksps/ch differential softspan adc.
