LTC2348-18

SoftSpan ADC

LTC2348-18 Features

* LTC2348-18 Octal, 18-Bit, 200ksps Differential ±10.24V Input SoftSpan ADC with Wide Input Common Mode Range Description nn 200ksps per Channel Throughput nn Eight Simultaneous Sampling Channels nn ±3LSB INL (Maximum, ±10.24V Range) nn Guaranteed 18-Bit, No Missing Codes nn Differential, Wide Commo

LTC2348-18 General Description

nn 200ksps per Channel Throughput nn Eight Simultaneous Sampling Channels nn ±3LSB INL (Maximum, ±10.24V Range) nn Guaranteed 18-Bit, No Missing Codes nn Differential, Wide Common Mode Range Inputs nn Per-Channel SoftSpan Input Ranges: ±10.24V, 0V to 10.24V, ±5.12V, 0V to 5.12V ±12.5V, 0V to 12..

LTC2348-18 Datasheet (2.17 MB)

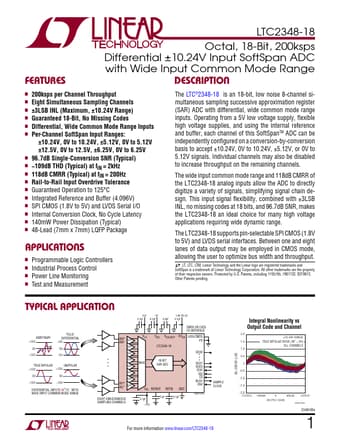

Preview of LTC2348-18 PDF

Datasheet Details

Part number:

LTC2348-18

Manufacturer:

Linear Technology

File Size:

2.17 MB

Description:

Softspan adc.
