LTC2666 - Octal 16-Bit/12-Bit SoftSpan DACs

Product Overview

Linear Technology

Part number	LTC2666
Manufacturer	Linear Technology
File Size	1.18 MB
Description	Octal 16-Bit/12-Bit SoftSpan DACs
Datasheet	LTC2666 Datasheet

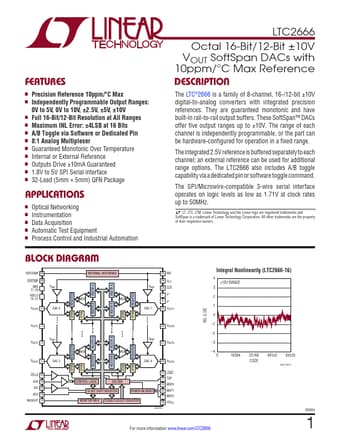

Additional preview pages of the LTC2666 datasheet.

The LTC®2666 is a family of 8-channel, 16-/12-bit ±10V digital-to-analog converters with integrated precision references.

nn Precision Reference 10ppm/°C Max nn Independently Programmable Output Ranges: 0V to 5V, 0V to 10V, ±2.5V, ±5V, ±10V nn Full 16-Bit/12-Bit Resolution at All Ranges nn Maximum INL Error: ±4LSB at 16 Bits nn A/B Toggle via Software or Dedicated Pin nn 8:1 Analog Multiplexer nn Guaranteed Monotonic Over Temperature nn Internal or External Reference nn Outputs Drive ±10mA Guaranteed nn 1.8V to 5V SPI Serial interface nn 32-Lead (5mm × 5mm) QFN Package.
