LTC2668

16-Channel 16-/12-Bit DACs

Linear Technology

LTC2668 Features

* nn Precision Reference 10ppm/°C Max nn Independently Programmable Output Ranges: 0V to 5V, 0V to 10V, ±2.5V, ±5V, ±10V nn Full 16-Bit/12-Bit Resolution at All Ranges nn Maximum INL Error: ±4LSB at 16 Bits nn A/B Toggle via Software or Dedicated Pin nn 16:1 Analog Multiplexer nn Guaranteed Monotonic

LTC2668 General Description

The LTC®2668 is a family of 16-channel, 16-/12-bit ±10V digital-to-analog converters with integrated precision references. They are guaranteed monotonic and have built-in rail-to-rail output buffers. These SoftSpan™ DACs offer five output ranges up to ±10V. The range of each channel is independently.

LTC2668 Datasheet (588.62 KB)

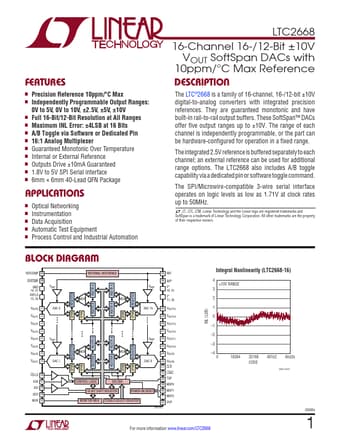

LTC2668 Datasheet Preview — Preview of LTC2668 PDF

Datasheet Details

Part number:

LTC2668

Manufacturer:

Linear Technology

File Size:

588.62 KB

Description:

16-channel 16-/12-bit dacs.
