LTC723, LTC721 Datasheet - Linearin

LTC723 CMOS Amplifiers

The LTC72x family of single-, dual-, and quad- channel operational amplifiers represents a new generation of general-purpose, low-power op-amps. Featuring railto-rail input and output (RRIO) swings, low quiescent current (typical 780 µA) combined with a wide bandwidth (11 MHz) and very low noise (8.

LTC723 Features

* Applications

* Wide Bandwidth and High Slew Rate: 11 MHz and 11.5 V/μs

* Fast Settling: 0.26 μs to 0.1%

* Low Noise: 8 nV/√Hz at 1 kHz

* Low Input Offset Voltage: ±0.5 mV

* Single 1.8 V to 5.5 V Supply Voltage Range at 0 ℃ to 70 ℃

* Rail-to-Rail Input and Output

* Inter

LTC721-Linearin.pdf

This datasheet PDF includes multiple part numbers: LTC723, LTC721. Please refer to the document for exact specifications by model.

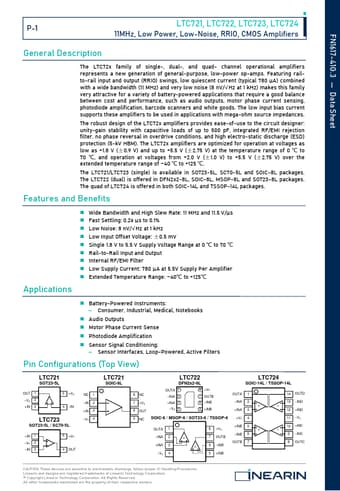

LTC723 Datasheet Preview Page 2 LTC723 Datasheet Preview Page 3

Datasheet Details

Part number:

LTC723, LTC721

Manufacturer:

Linearin

File Size:

947.88 KB

Description:

Cmos amplifiers.

Note:

This datasheet PDF includes multiple part numbers: LTC723, LTC721.
Please refer to the document for exact specifications by model.
