SP3021-01ETG, SP3021 - TVS Diode Array

Littelfuse

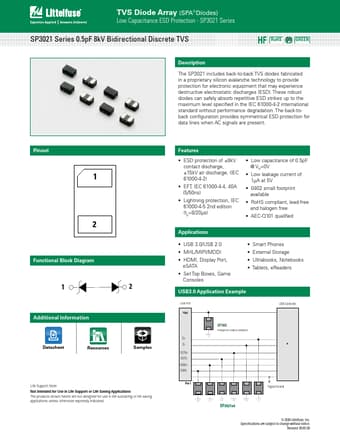

SP3021-01ETG Datasheet Preview — This datasheet PDF includes multiple part numbers: SP3021-01ETG, SP3021. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SP3021-01ETG, SP3021
Manufacturer	Littelfuse ↗
File Size	1.03 MB
Description	TVS Diode Array
Datasheet	SP3021-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: SP3021-01ETG, SP3021. Please refer to the document for exact specifications by model.

SP3021-01ETG Product details

Description

The SP3021 includes back-to-back TVS diodes fabricated in a proprietary silicon avalanche technology to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD).

Features

ESD protection of ±8kV contact discharge, ±15kV air discharge, (IEC 61000-4-2).
EFT, IEC 61000-4-4, 40A (5/50ns).
Lightning protection, IEC 61000-4-5 2nd edition (tp=8/20µs).
Low capacitance of 0.5pF @ VR=0V.
L ow leakage current of 1μA at 5V.
0402 small footprint available.
RoHS compliant, lead-free and halogen free.
AEC-Q101 qualified.
