SP3021

TVS Diode Array

SP3021 Features

* ESD protection of ±8kV contact discharge, ±15kV air discharge, (IEC 61000-4-2)

* EFT, IEC 61000-4-4, 40A (5/50ns)

* Lightning protection, IEC 61000-4-5 2nd edition (tp=8/20µs)

* Low capacitance of 0.5pF @ VR=0V

* L ow leakage current of 1μA at 5V

SP3021 General Description

The SP3021 includes back-to-back TVS diodes fabricated in a proprietary silicon avalanche technology to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes up to the maximum level spe.

SP3021 Datasheet (1.03 MB)

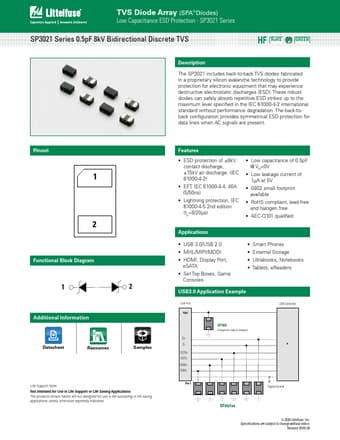

Preview of SP3021 PDF

Datasheet Details

Part number:

SP3021

Manufacturer:

Littelfuse ↗

File Size:

1.03 MB

Description:

Tvs diode array.
TVS Diode Array (SPA®Diodes) Low Capacitance ESD Protection - SP3021 Series SP3021 Series 0.5pF 8kV Bidirectional Discrete TVS RoHS Pb GREEN Descrip.
