SP3022-01ETG, SP3022 - Bidirectional Discrete TVS

Littelfuse

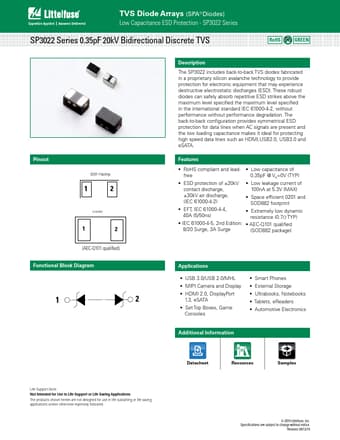

SP3022-01ETG Datasheet Preview — This datasheet PDF includes multiple part numbers: SP3022-01ETG, SP3022. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SP3022-01ETG, SP3022
Manufacturer	Littelfuse ↗
File Size	925.50 KB
Description	Bidirectional Discrete TVS
Datasheet	SP3022-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: SP3022-01ETG, SP3022. Please refer to the document for exact specifications by model.

SP3022-01ETG Product details

Description

The SP3022 includes back-to-back TVS diodes fabricated in a proprietary silicon avalanche technology to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD).

Features

RoHS compliant and lead-.
Low capacitance of free 0.35pF @ VR=0V (TYP).
ESD protection of ±20kV.
L ow leakage current of contact discharge, 100nA at 5.3V (MAX) ±30kV air discharge, (IEC 61000-4-2).
Space efficient 0201 and SOD882 footprint.
EFT, IEC 61000-4-4, 40A (5/50ns).
Extremely low dynamic resistance (0.7Ω TYP).
IEC 61000-4-5, 2nd Edition:.
AEC-Q101 qualified 8/20 Surge, 3A Surge (SOD882 packag.
