SP3022

Bidirectional Discrete TVS

SP3022 Features

* RoHS compliant and lead-

* Low capacitance of free 0.35pF @ VR=0V (TYP)

* ESD protection of ±20kV

* L ow leakage current of contact discharge, 100nA at 5.3V (MAX) ±30kV air discharge, (IEC 61000-4-2)

* Space efficient 0201 and SOD882 footprint

SP3022 General Description

The SP3022 includes back-to-back TVS diodes fabricated in a proprietary silicon avalanche technology to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes above the maximum level spe.

SP3022 Datasheet (925.50 KB)

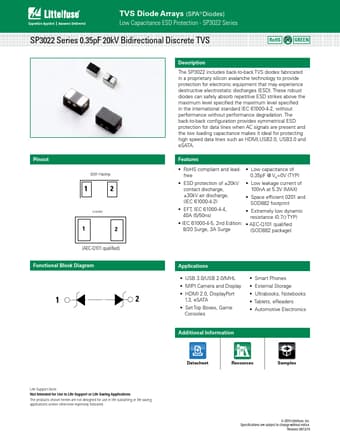

Preview of SP3022 PDF

Datasheet Details

Part number:

SP3022

Manufacturer:

Littelfuse ↗

File Size:

925.50 KB

Description:

Bidirectional discrete tvs.
TVS Diode Arrays (SPA®Diodes) Low Capacitance ESD Protection - SP3022 Series SP3022 Series 0.35pF 20kV Bidirectional Discrete TVS RoHS Pb GREEN Pino.
