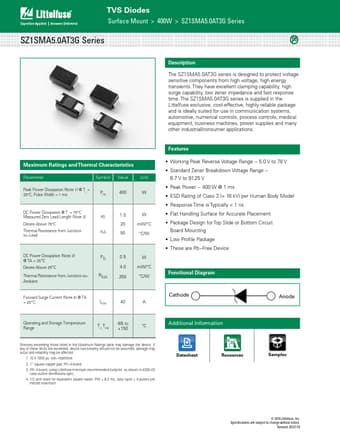

SZ1SMA18AT3G, SZ1SMA5.0AT3G Datasheet - Littelfuse

SZ1SMA18AT3G, SZ1SMA5.0AT3G, TVS Diodes

TVS Diodes Surface Mount > 400W > SZ1SMA5.0AT3G Series SZ1SMA5.0AT3G Series Pb .
The SZ1SMA5.

Features

* Working Peak Reverse Voltage Range
* 5.0 V to 78 V
* Standard Zener Breakdown Voltage Range
* 6.7 V to 91.25 V
* Peak Power
* 400 W @ 1 ms
* ESD Rating of Class 3 (> 16 kV) per Human Body Model
* Response Time is Typically < 1 ns

Applications

* Maximum Ratings and Thermal Characteristics Parameter Symbol Value Unit Peak Power Dissipation (Note 1) @ TL = 25°C, Pulse Width = 1 ms PPK 400 W DC Power Dissipation @ TL = 75°C Measured Zero Lead Length (Note 2) Derate Above 75°C Thermal Resistance from Junction to
* Lead PD 1.0

SZ1SMA5.0AT3G-Littelfuse.pdf
