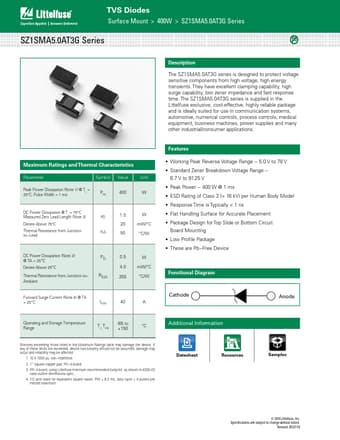

TVS Diodes Surface Mount > 400W > SZ1SMA5.0AT3G Series SZ1SMA5.0AT3G Series Pb .
The SZ1SMA5.
Features
* Working Peak Reverse Voltage Range
* 5.0 V to 78 V
* Standard Zener Breakdown Voltage Range
* 6.7 V to 91.25 V
* Peak Power
* 400 W @ 1 ms
* ESD Rating of Class 3 (> 16 kV) per Human Body Model
* Response Time is Typically < 1 ns
Applications
* Maximum Ratings and Thermal Characteristics
Parameter
Symbol Value
Unit
Peak Power Dissipation (Note 1) @ TL = 25°C, Pulse Width = 1 ms
PPK
400
W
DC Power Dissipation @ TL = 75°C Measured Zero Lead Length (Note 2)
Derate Above 75°C Thermal Resistance from Junction to
* Lead
PD
1.0
