SZ1SMA70AT3G, SZ1SMA5.0AT3G TVS Diodes

SZ1SMA70AT3G Description

TVS Diodes Surface Mount > 400W > SZ1SMA5.0AT3G Series SZ1SMA5.0AT3G Series Pb .
The SZ1SMA5.

SZ1SMA70AT3G Features

* Working Peak Reverse Voltage Range
* 5.0 V to 78 V
* Standard Zener Breakdown Voltage Range
* 6.7 V to 91.25 V
* Peak Power
* 400 W @ 1 ms
* ESD Rating of Class 3 (> 16 kV) per Human Body Model
* Response Time is Typically < 1 ns

SZ1SMA70AT3G Applications

* Maximum Ratings and Thermal Characteristics Parameter Symbol Value Unit Peak Power Dissipation (Note 1) @ TL = 25°C, Pulse Width = 1 ms PPK 400 W DC Power Dissipation @ TL = 75°C Measured Zero Lead Length (Note 2) Derate Above 75°C Thermal Resistance from Junction to
* Lead PD 1.0

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SZ1SMA70AT3G, SZ1SMA5.0AT3G. Please refer to the document for exact specifications by model.

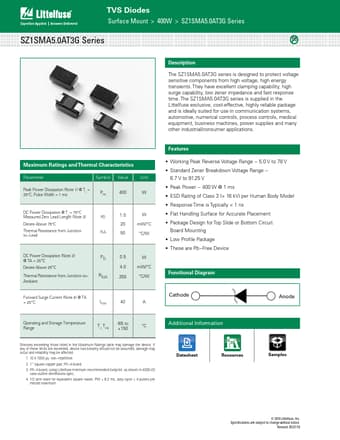

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SZ1SMA70AT3G, SZ1SMA5.0AT3G
Manufacturer
Littelfuse ↗
File Size
340.41 KB
Datasheet
SZ1SMA5.0AT3G-Littelfuse.pdf
Description
TVS Diodes
Note
This datasheet PDF includes multiple part numbers: SZ1SMA70AT3G, SZ1SMA5.0AT3G.
Please refer to the document for exact specifications by model.
