SZ1SMA8.0AT3G, SZ1SMA5.0AT3G Datasheet - Littelfuse

SZ1SMA8.0AT3G TVS Diodes

The SZ1SMA5.0AT3G series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SZ1SMA5.0AT3G series is supplied in the Littelfuse exclusive, cost-e.

SZ1SMA8.0AT3G Features

* Working Peak Reverse Voltage Range

* 5.0 V to 78 V

* Standard Zener Breakdown Voltage Range

* 6.7 V to 91.25 V

* Peak Power

* 400 W @ 1 ms

* ESD Rating of Class 3 (> 16 kV) per Human Body Model

* Response Time is Typically < 1 ns

SZ1SMA5.0AT3G-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: SZ1SMA8.0AT3G, SZ1SMA5.0AT3G. Please refer to the document for exact specifications by model.

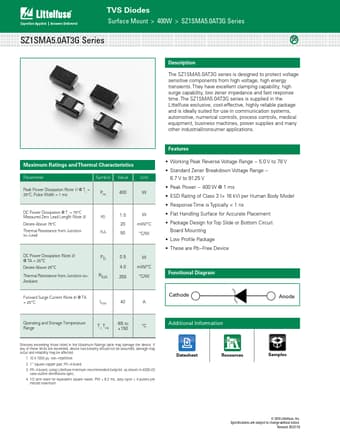

SZ1SMA8.0AT3G Datasheet Preview Page 2 SZ1SMA8.0AT3G Datasheet Preview Page 3

Datasheet Details

Part number:

SZ1SMA8.0AT3G, SZ1SMA5.0AT3G

Manufacturer:

Littelfuse ↗

File Size:

340.41 KB

Description:

Tvs diodes.

Note:

This datasheet PDF includes multiple part numbers: SZ1SMA8.0AT3G, SZ1SMA5.0AT3G.
Please refer to the document for exact specifications by model.
