SZ1SMC78AT3G

TVS Diodes

SZ1SMC78AT3G Features

* & Benefits

* Zener Transient Overvoltage Suppressors

* Working Peak Reverse Voltage Range

* 5.0 V to 170 V

* Standard Zener Breakdown Voltage Range

* 6.4 V to 209 V

* Peak Power

* 1500 W@1 ms

* ESD protection of data lines in accordance with IEC 61000-4-2

SZ1SMC78AT3G General Description

The SZ1SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SZ1SMC series is supplied in cost-effective, highly reliable DO-214AB packa.

SZ1SMC78AT3G Datasheet (597.46 KB)

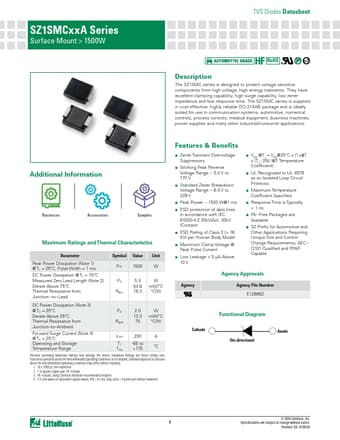

Preview of SZ1SMC78AT3G PDF

Datasheet Details

Part number:

SZ1SMC78AT3G

Manufacturer:

Littelfuse ↗

File Size:

597.46 KB

Description:

Tvs diodes.
