LP6205S - High Efficiency Boost DC/DC Regulator

Datasheet Summary

Description

The LP6205 is a current mode boost DC-DC converter.

Its PWM circuitry with built-in 0.3Ω,24V,1.5A Current power MOSFET makes this converter highly power efficiently.

Selectable high switching frequency allows faster loop response and easy filtering with a low noise output.

Features

  • 1.3V Start-up Input Voltage.
  • Output up to 1.5A.
  • Zero Shutdown Mode Supply Current.
  • 94% Efficiency.
  • Up to 1.2MHz Switching Frequency.
  • Using Internal Power Switches.
  • Small SOT23-6 Package 　 Typical.

📥 Download Datasheet

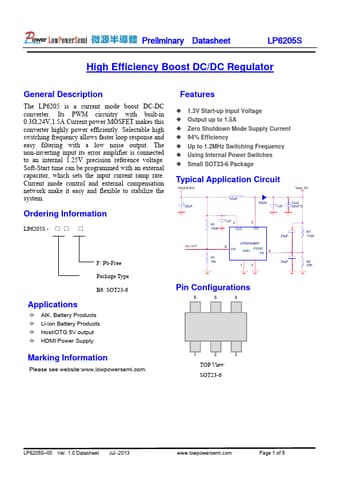

Datasheet preview – LP6205S

Datasheet Details

Part number LP6205S
Manufacturer Lowpowersemi
File Size 360.33 KB
Description High Efficiency Boost DC/DC Regulator
Datasheet download datasheet LP6205S Datasheet
Additional preview pages of the LP6205S datasheet.

📁 Similar Datasheet

  • LP6208 - Tink Package High Efficiency Boost DC - DC Regulator (POWER)
  • LP621024D - 128K X 8 BIT CMOS SRAM (AMIC Technology)
  • LP621024D-T - 128K x 8-BIT CMOS SRAM (AMIC)
  • LP621024E - 128K x 8 BIT CMOS SRAM (AMIC Technology)
  • LP62E16256E-T - 256K X 16 BIT LOW VOLTAGE CMOS SRAM (AMIC Technology)
  • LP62E16512-I - 512K X 16 BIT LOW VOLTAGE CMOS SRAM (AMIC Technology)
  • LP62E16512-T - 512K X 16 BIT LOW VOLTAGE CMOS SRAM (AMIC Technology)
  • LP62P16128C-T - 128K X 16 BIT LOW VOLTAGE CMOS SRAM (AMIC Technology)
  • LP62P16128CU-12LLT - 128K X 16 BIT LOW VOLTAGE CMOS SRAM (AMIC Technology)
  • LP62P16128CV-12LLT - 128K X 16 BIT LOW VOLTAGE CMOS SRAM (AMIC Technology)
Other Datasheets by Lowpowersemi
  • LP6212 - High Efficiency 6A Boost DC/DC Convertor
  • LP6217 - 26V/2.1A Current Boost
  • LP6218 - High Efficiency 2.1A Boost DC/DC Convertor
  • LP6223 - High Efficiency Boost DC/DC Convertor
  • LP6226 - High Efficiency Boost DC/DC Convertor
  • LP6226A - High Efficiency Boost DC/DC Convertor
  • LP6229 - High Efficiency Boost DC/DC Convertor
  • LP6230 - High Efficiency 2.5A/28V Boost DC/DC Convertor

Full PDF Text Transcription

Click to expand full text
Preliminary Datasheet LP6205S High Efficiency Boost DC/DC Regulator General Description The LP6205 is a current mode boost DC-DC converter. Its PWM circuitry with built-in 0.3Ω,24V,1.5A Current power MOSFET makes this converter highly power efficiently. Selectable high switching frequency allows faster loop response and easy filtering with a low noise output. The non-inverting input its error amplifier is connected to an internal 1.25V precision reference voltage. Soft-Start time can be programmed with an external capacitor, which sets the input current ramp rate. Current mode control and external compensation network make it easy and flexible to stabilize the system. Ordering Information LP6205S - □ □ □ F: Pb-Free Package Type B6: SOT23-6 Applications  AlK.
