LP6217 - 26V/2.1A Current Boost

Datasheet Summary

Description

The LP6217 is high efficiency Boost DC/DC Converter, fixed frequency, current-mode step-up converter with output to input disconnect.

A PWM step-up DC/DC converters optimized to provide a high efficiency solution to medium power system.

Features

  • minimize overall solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. Ordering Information LP6217 -.
  • F: Pb-Free Package Type B6: SOT23-6 Marking Information Please see website. Features — Up to 94% efficiency — Shut-down current:.

📥 Download Datasheet

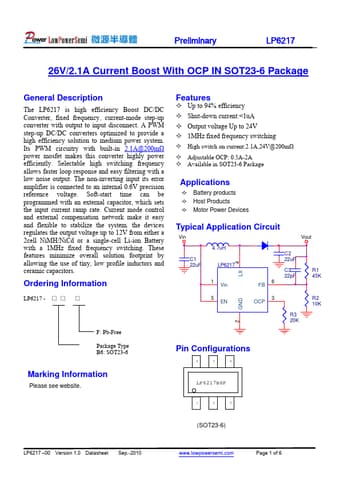

Datasheet preview – LP6217

Datasheet Details

Part number LP6217
Manufacturer Lowpowersemi
File Size 334.93 KB
Description 26V/2.1A Current Boost
Datasheet download datasheet LP6217 Datasheet
Additional preview pages of the LP6217 datasheet.

📁 Similar Datasheet

  • LP621024D - 128K X 8 BIT CMOS SRAM (AMIC Technology)
  • LP621024D-T - 128K x 8-BIT CMOS SRAM (AMIC)
  • LP621024E - 128K x 8 BIT CMOS SRAM (AMIC Technology)
  • LP6208 - Tink Package High Efficiency Boost DC - DC Regulator (POWER)
  • LP62E16256E-T - 256K X 16 BIT LOW VOLTAGE CMOS SRAM (AMIC Technology)
  • LP62E16512-I - 512K X 16 BIT LOW VOLTAGE CMOS SRAM (AMIC Technology)
  • LP62E16512-T - 512K X 16 BIT LOW VOLTAGE CMOS SRAM (AMIC Technology)
  • LP62P16128C-T - 128K X 16 BIT LOW VOLTAGE CMOS SRAM (AMIC Technology)
  • LP62P16128CU-12LLT - 128K X 16 BIT LOW VOLTAGE CMOS SRAM (AMIC Technology)
  • LP62P16128CV-12LLT - 128K X 16 BIT LOW VOLTAGE CMOS SRAM (AMIC Technology)
Other Datasheets by Lowpowersemi
  • LP6212 - High Efficiency 6A Boost DC/DC Convertor
  • LP6218 - High Efficiency 2.1A Boost DC/DC Convertor
  • LP6205S - High Efficiency Boost DC/DC Regulator
  • LP6223 - High Efficiency Boost DC/DC Convertor
  • LP6226 - High Efficiency Boost DC/DC Convertor
  • LP6226A - High Efficiency Boost DC/DC Convertor
  • LP6229 - High Efficiency Boost DC/DC Convertor
  • LP6230 - High Efficiency 2.5A/28V Boost DC/DC Convertor

Full PDF Text Transcription

Click to expand full text
Preliminary LP6217 26V/2.1A Current Boost With OCP IN SOT23-6 Package General Description The LP6217 is high efficiency Boost DC/DC Converter, fixed frequency, current-mode step-up converter with output to input disconnect. A PWM step-up DC/DC converters optimized to provide a high efficiency solution to medium power system. Its PWM circuitry with built-in 2.1A@200mΩ power mosfet makes this converter highly power efficiently. Selectable high switching frequency allows faster loop response and easy filtering with a low noise output. The non-inverting input its error amplifier is connected to an internal 0.6V precision reference voltage. Soft-start time can be programmed with an external capacitor, which sets the input current ramp rate.
