LP621024E - 128K x 8 BIT CMOS SRAM

Datasheet Summary

Description

The LP621024E is a low operating current 1,048,576-bit static random access memory organized as 131,072 words by 8 bits and operates on a single 5V power supply.

Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.

Features

  • Single +5V power supply.
  • Access times: 55/70 ns (max. ).
  • Current: Very low power version: Operating: 70mA (max. ) Standby: 25μA (max. ).
  • Full static operation, no clock or refreshing required.
  • All inputs and outputs are directly TTL-compatible.
  • Common I/O using three-state output.
  • Output enable and two chip enable inputs for easy.

📥 Download Datasheet

Datasheet preview – LP621024E

Datasheet Details

Part number LP621024E
Manufacturer AMIC Technology
File Size 163.43 KB
Description 128K x 8 BIT CMOS SRAM
Datasheet download datasheet LP621024E Datasheet
Additional preview pages of the LP621024E datasheet.

📁 Similar Datasheet

  • LP621024D-T - 128K x 8-BIT CMOS SRAM (AMIC)
  • LP6212 - High Efficiency 6A Boost DC/DC Convertor (Lowpowersemi)
  • LP6217 - 26V/2.1A Current Boost (Lowpowersemi)
  • LP6218 - High Efficiency 2.1A Boost DC/DC Convertor (Lowpowersemi)
  • LP6205S - High Efficiency Boost DC/DC Regulator (Lowpowersemi)
  • LP6208 - Tink Package High Efficiency Boost DC - DC Regulator (POWER)
  • LP6223 - High Efficiency Boost DC/DC Convertor (Lowpowersemi)
  • LP6226 - High Efficiency Boost DC/DC Convertor (Lowpowersemi)
  • LP6226A - High Efficiency Boost DC/DC Convertor (Lowpowersemi)
  • LP6229 - High Efficiency Boost DC/DC Convertor (Lowpowersemi)
Other Datasheets by AMIC Technology

Full PDF Text Transcription

Click to expand full text

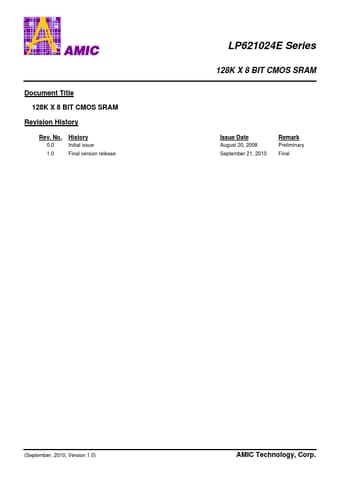

Document Title 128K X 8 BIT CMOS SRAM Revision History Rev. No. 0.0 1.0 History Initial issue Final version release LP621024E Series 128K X 8 BIT CMOS SRAM Issue Date August 20, 2008 September 21, 2010 Remark Preliminary Final (September, 2010, Version 1.0) AMIC Technology, Corp. LP621024E Series 128K X 8 BIT CMOS SRAM Features „ Single +5V power supply „ Access times: 55/70 ns (max.) „ Current: Very low power version: Operating: 70mA (max.) Standby: 25μA (max.) „ Full static operation, no clock or refreshing required „ All inputs and outputs are directly TTL-compatible „ Common I/O using three-state output „ Output enable and two chip enable inputs for easy application „ Data retention voltage: 2V (min.) „ Available in 32-pin SOP, TSOP and TSSOP (8 X 13.
