IT7801

5V/1A High Efficiency Step-Down DC/DC Converter

IT7801 Features

* High Efficiency up to 95% 2.5V to 6.0V Input Voltage Range 1A Output Current 1.5MHz Constant Frequency Operation Current Mode Operation Internal Soft-start Over-temperature/short Protection 100% Duty Cycle for Lowest Dropout 0.1µA Shutdown Current RoHS Compliant (100% Green Available) Applications P

IT7801 General Description

The IT7801 is a high efficiency synchronous step-down DC-DC converter, optimized for battery powered portable applications. It can supply 1A of load current at input voltage ranging from 2.5V to 6.0V and enter the power saving mode operation at light load current to maintain high efficiency over the.

IT7801 Datasheet (23.47 KB)

Rating: 1 ★ (4 votes)

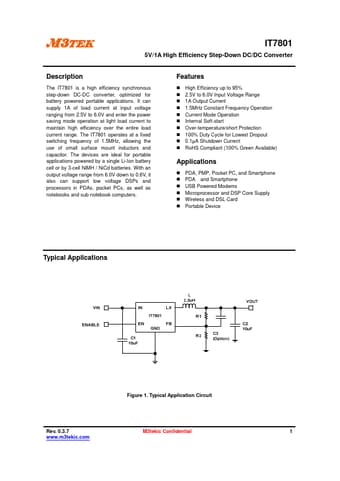

Preview of IT7801 PDF

Datasheet Details

Part number:

IT7801

Manufacturer:

M3TEK

File Size:

23.47 KB

Description:

5v/1a high efficiency step-down dc/dc converter.
