IT7831

5V/1A High Efficiency Synchronous Step-Down DC/DC Converter

IT7831 Features

* High Efficiency up to 95% 2.5V to 6.0V Input Voltage Range 1A Output Current 1.2MHZ Oscillator Frequency Operation Allowable 0.6V Low Output Voltage Current Mode Operation Internal Soft-start Over-temperature Protection 0.1µA Shutdown Current SOT235 and TSOT235 Small Package Adjustable from 0.6V to

IT7831 General Description

The IT7831 is a high efficiency step-down DC/DC converter using a constant frequency, current mode architecture. The device integrates a main switch and a synchronous rectifier for high efficiency without an external schottky diode. The supply current during operation is only 190µA and drops to < 1µ.

IT7831 Datasheet (27.30 KB)

Rating: 1 ★ (4 votes)

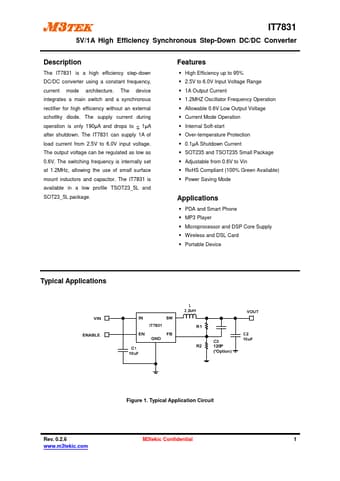

Preview of IT7831 PDF

Datasheet Details

Part number:

IT7831

Manufacturer:

M3TEK

File Size:

27.30 KB

Description:

5v/1a high efficiency synchronous step-down dc/dc converter.
