IT7803 Datasheet - M3TEK

IT7803 5V/3A High Efficiency Step-Down DC/DC Converter

The IT7803 is a low-input voltage and high-output current synchronous-buck PWM converter and integrates with all required active components. Its’ operating input voltage ranges from 2.5V to 6V and output voltage ranges from VIN down to 0.8V. The IT7803 operates at a fixed switching frequency of 1.0M.

IT7803 Features

* High Efficiency up to 95% 2.5V to 6V Input Voltage Range 3A Output Current 220µA Low Quiescent Current (Active Mode) Shutdown Current: 7µA 1.0MHz Constant Frequency Operation 0.8V to VIN Adjustable Output Voltage Current Mode Operation Power Good Function Monitoring Output Voltage Internal Soft-Star

IT7803 Datasheet (28.09 KB)

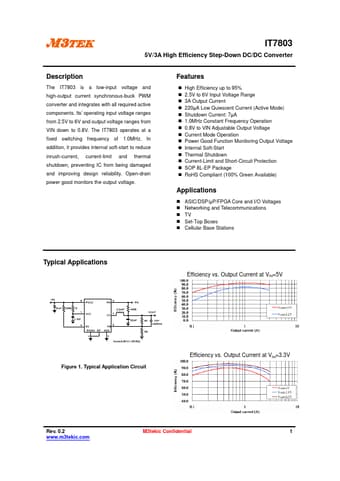

Preview of IT7803 PDF

Datasheet Details

Part number:

IT7803

Manufacturer:

M3TEK

File Size:

28.09 KB

Description:

5v/3a high efficiency step-down dc/dc converter.
