IT7832 Datasheet - M3TEK

5V/2A High Efficiency Step-Down DC/DC Converter

IT7832 Features

* 2.7V to 6V Input Voltage Range 2A Output Current Typical Quiescent Current: 0.65mA 300kHz to 1.4MHz Adjustable Frequency Operation 0.8V to VIN Adjustable Output Voltage 100% Duty Cycle for Lowest Dropout 0% Duty Cycle External Compensation Internal Soft-Start Enable Internal Pull High. Thermal Shutd

IT7832 General Description

The IT7832 is a low-input voltage and high-output current synchronous-buck PWM converter and integrates with all required active components. Its’ operating input voltage ranges from 2.7V to 6V and output voltage ranges from VIN down to 0.8V. The switching frequency is adjustable ranging from 300kHz .

IT7832 Datasheet (35.85 KB)

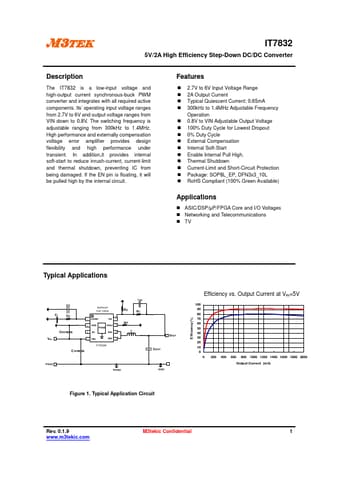

Preview of IT7832 PDF

Datasheet Details

Part number:

IT7832

Manufacturer:

M3TEK

File Size:

35.85 KB

Description:

5v/2a high efficiency step-down dc/dc converter.
