MAPS-010143, MAPS-010143-MA, Digital Phase Shifter

MAPS-010143 Digital Phase Shifter 4-Bit, 1.4 - 2.4 GHz .
The MAPS-010143 is a GaAs pHEMT 4-bit digital phase shifter with an integral CMOS driver in a 4 mm PQFN plastic surface mount package.

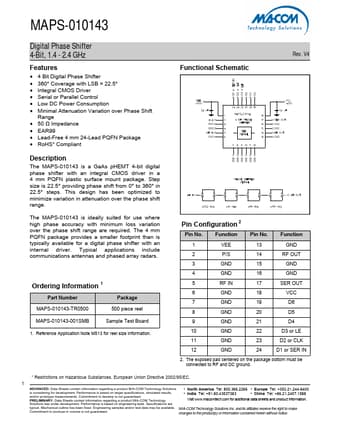

datasheet Preview Page 1 from Datasheet4u.com

MAPS-010143-MA-COMTechnology.pdf

MAPS-010143 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAPS-010143, MAPS-010143-MA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAPS-010143, MAPS-010143-MA

Manufacturer:

MA-COM Technology

File Size:

618.52 KB

Description:

Digital Phase Shifter

Note:

This datasheet PDF includes multiple part numbers: MAPS-010143, MAPS-010143-MA.
Please refer to the document for exact specifications by model.

Features

* 
* 
* 
* 
* 
* 
* 
* 
* 
*  4 Bit Digital Phase Shifter 360° Coverage with LSB = 22.5° Integral CMOS Driver Serial or Parallel Control Low DC Power Consumption Minimal Attenuation Variation over Phase Shift Range 50 Ω Impedance EAR99 Lead-Free 4 mm 24-Lead P

Applications

* include communications antennas and phased array radars. Pin Configuration 2 Pin No. 1 2 3 4 Function VEE P/S GND GND RF IN GND GND GND GND GND GND GND Pin No. 13 14 15 16 17 18 19 20 21 22 23 24 Function GND RF OUT GND GND SER OUT VCC D6 D5 D4 D3 or LE D2 or CLK D1 or SER IN Ordering Information
