MAPS-010163, MAPS-010163-MA, Digital Phase Shifter

MAPS-010163 Digital Phase Shifter 6-Bit, 1.4 - 2.4 GHz .
The MAPS-010163 is a GaAs pHEMT 6-bit digital phase shifter with an integral CMOS driver in a 4 mm PQFN plastic surface mount package.

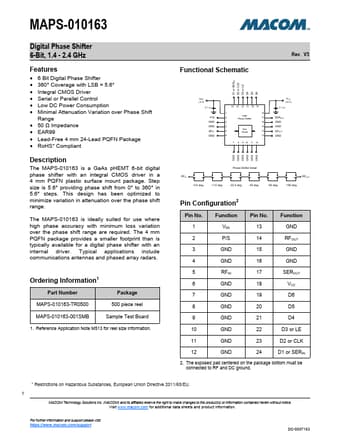

datasheet Preview Page 1 from Datasheet4u.com

MAPS-010163-MA-COMTechnology.pdf

MAPS-010163 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAPS-010163, MAPS-010163-MA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAPS-010163, MAPS-010163-MA

Manufacturer:

MA-COM Technology

File Size:

1.11 MB

Description:

Digital Phase Shifter

Note:

This datasheet PDF includes multiple part numbers: MAPS-010163, MAPS-010163-MA.
Please refer to the document for exact specifications by model.

Features

* 6 Bit Digital Phase Shifter
* 360° Coverage with LSB = 5.6°
* Integral CMOS Driver
* Serial or Parallel Control
* Low DC Power Consumption
* Minimal Attenuation Variation over Phase Shift Range
* 50 Ω Impedance
* EAR99
* Lead-Free 4 mm 24-Lead PQFN Package

Applications

* include communications antennas and phased array radars. Ordering Information1 Part Number Package MAPS-010163-TR0500 500 piece reel MAPS-010163-001SMB Sample Test Board 1. Reference Application Note M513 for reel size information. Functional Schematic Rev. V5 D1 or SERIN D2 or CLK D3 or
