MAPS-010144 Digital Phase Shifter

The MAPS-010144 is a GaAs pHEMT 4-bit digital phase shifter with an integrated CMOS driver in a 4 mm PQFN plastic surface mount package. Step size is 22.5° providing phase shift from 0° to 360° in 22.5° steps. This design has been optimized to minimize variation in attenuation over the phase shift r.

MAPS-010144 Features

* 

* 

* 

* 

* 

* 

* 

* 

* 

*  4 Bit Digital Phase Shifter 360° Coverage with LSB = 22.5° Integrated CMOS Driver Serial or Parallel Control Low DC Power Consumption Minimal Attenuation Variation over Phase Shift Range 50 Ω Impedance EAR99 Lead-Free 4 mm 24-Lead

MAPS-010144-MA-COMTechnology.pdf

This datasheet PDF includes multiple part numbers: MAPS-010144, MAPS-010144-MA. Please refer to the document for exact specifications by model.

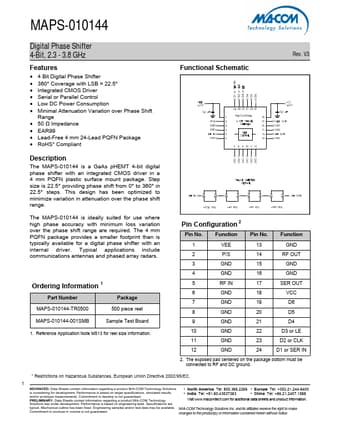

MAPS-010144 Datasheet Preview Page 2 MAPS-010144 Datasheet Preview Page 3

Datasheet Details

Part number:

MAPS-010144, MAPS-010144-MA

Manufacturer:

MA-COM Technology

File Size:

627.26 KB

Description:

Digital phase shifter.

Note:

This datasheet PDF includes multiple part numbers: MAPS-010144, MAPS-010144-MA.
Please refer to the document for exact specifications by model.
