MAPS-010164, 6-Bit Digital Phase Shifter

MAPS-010164 Digital Phase Shifter 6-Bit, 2.3 - 3.8 GHz .
The MAPS-010164 is a GaAs pHEMT 6-bit digital phase shifter with an integrated CMOS driver in a 4 mm PQFN plastic surface mount package.

datasheet Preview Page 1 from Datasheet4u.com

MAPS-010164-MACOM.pdf

MAPS-010164 Datasheet Preview — Preview of MAPS-010164 PDF

Datasheet Details

Part number:

MAPS-010164

Manufacturer:

MACOM

File Size:

1.24 MB

Description:

6-Bit Digital Phase Shifter

Features

* 6 Bit Digital Phase Shifter
* 360° Coverage with LSB = 5.6°
* Integrated CMOS Driver
* Serial or Parallel Control
* Low DC Power Consumption
* Minimal Attenuation Variation over Phase Shift Range
* 50 Ω Impedance
* EAR99
* Lead-Free 4 mm 24-Lead PQFN Package

Applications

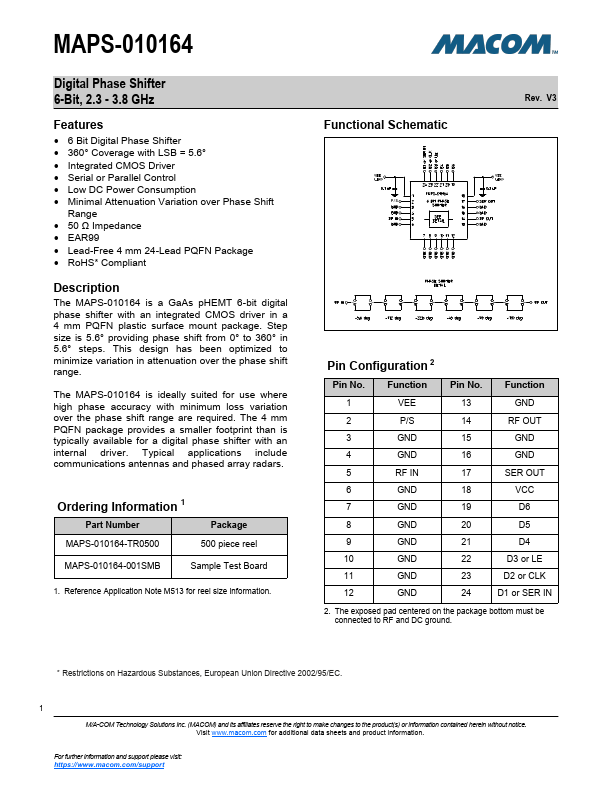

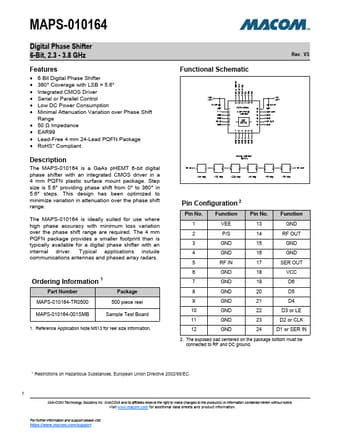

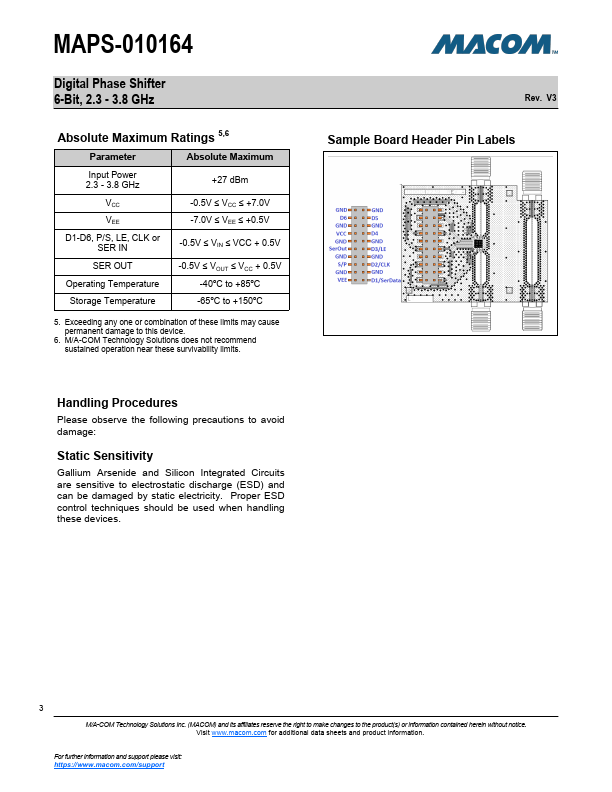

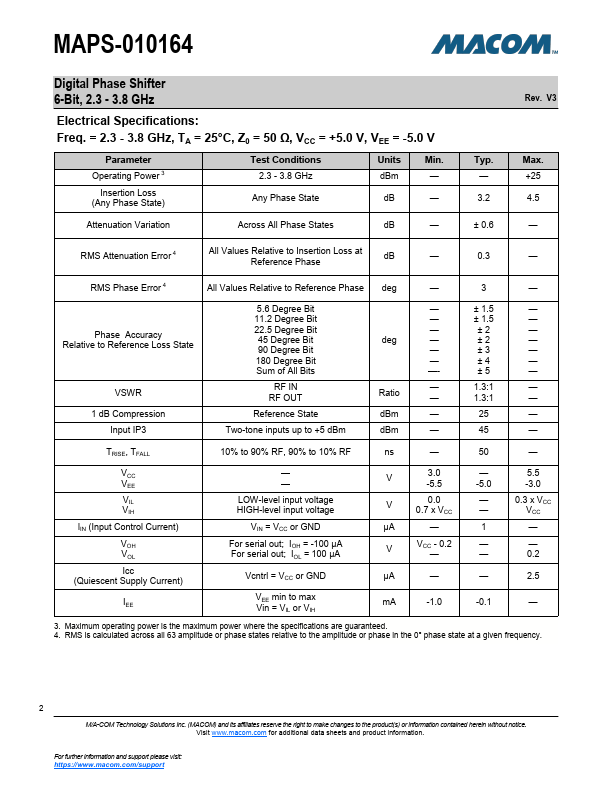

* include communications antennas and phased array radars. Ordering Information 1 Part Number MAPS-010164-TR0500 Package 500 piece reel MAPS-010164-001SMB Sample Test Board 1. Reference Application Note M513 for reel size information. Functional Schematic P/S Rev. V3 Pin Configuration 2 Pin N
