MAGX-000035-01500S, MAGX-000035-015000-MA - Power Transistor

MAGX-000035-01500S Description

MAGX-000035-015000 MAGX-000035-01500S GaN on SiC HEMT Pulsed Power Transistor 15 W, DC - 3.5 GHz .
The MAGX-000035-01500X is a gold-metalized unmatched Gallium Nitride (GaN) on Silicon Carbide RF power transistor suitable for a variety of RF power a.

MAGX-000035-01500S Features

*  GaN on SiC Depletion Mode Transistor
*  Common-Source Configuration
*  Broadband Class AB Operation
*  Thermally Enhanced Package (Flanged: Cu/W, Flangeless: Cu)
*  RoHS
* Compliant
*  +50V Typical Operation

MAGX-000035-01500S Applications

*  Commercial Wireless Infrastructure (WCDMA, LTE, WiMAX)
*  Air Traffic Control Radar - Commercial
*  Weather Radar - Commercial
*  Military Radar - Military
*  Public Radio
*  Industrial, Scientific and Medical
*  SATCOM

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAGX-000035-01500S, MAGX-000035-015000-MA. Please refer to the document for exact specifications by model.

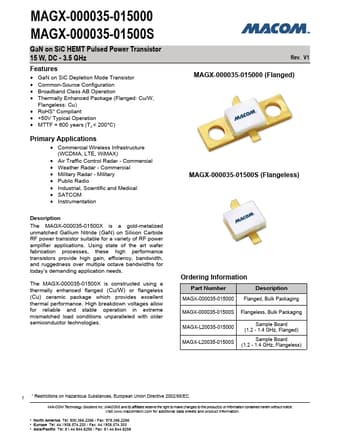

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAGX-000035-01500S, MAGX-000035-015000-MA
Manufacturer
MA-COM
File Size
763.50 KB
Datasheet
MAGX-000035-015000-MA-COM.pdf
Description
Power Transistor
Note
This datasheet PDF includes multiple part numbers: MAGX-000035-01500S, MAGX-000035-015000-MA.
Please refer to the document for exact specifications by model.
