MASW-007075-000100 Datasheet, Switch, MA-COM

MASW-007075-000100 Features

• Switch
• Typical Isolation: 36 dB (2,000 MHz)
• Typical Insertion Loss: 1.8 dB (2,000 MHz)
• Integral ASIC TTL/CMOS Driver
• Low DC Power Consumption

PDF File Details

Part number:

MASW-007075-000100

Manufacturer:

MA-COM

File Size:

624.70kb

Download:

📄 Datasheet

Description:

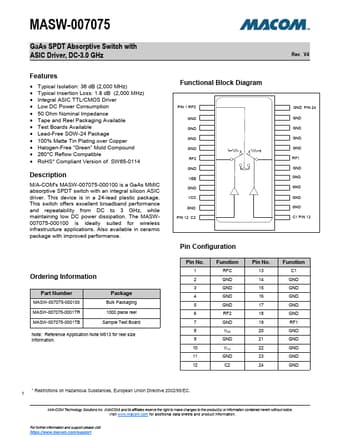

Gaas spdt absorptive switch. M/A-COM's MASW-007075-000100 is a GaAs MMIC absorptive SPDT switch with an integral silicon ASIC driver. This device is in a 24-lead

MASW-007075-000100 Application

• Applications Also available in ceramic package with improved performance. Ordering Information Part Number MASW-007075-000100 MASW-007075-0001TR
