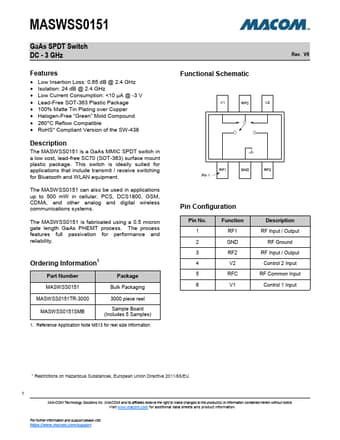

MASWSS0151 Datasheet, Switch, MA-COM

MASWSS0151 Features

• Switch
• Low Insertion Loss: 0.65 dB @ 2.4 GHz
• Isolation: 24 dB @ 2.4 GHz
• Low Current Consumption: <10 μA @ -3 V
• Lead-Free SOT-363 Plastic Package

PDF File Details

Part number:

MASWSS0151

Manufacturer:

MA-COM

File Size:

630.21kb

Download:

📄 Datasheet

Description:

Gaas spdt switch. The MASWSS0151 is a GaAs MMIC SPDT switch in a low cost, lead-free SC70 (SOT-363) surface mount plastic package. This switch is ideal

MASWSS0151 Application

• Applications that include transmit / receive switching for Bluetooth and WLAN equipment. The MASWSS0151 can also be used in applications up to 500 m
