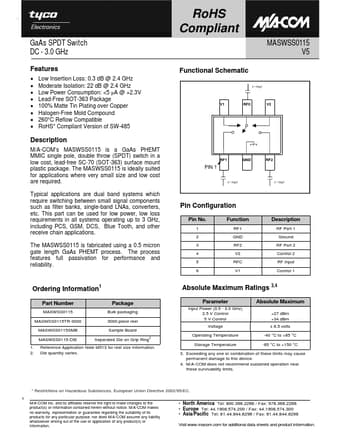

MASWSS0115 Datasheet, Switch, Tyco Electronics

MASWSS0115 Features

• Switch
• Low Insertion Loss: 0.3 dB @ 2.4 GHz Moderate Isolation: 22 dB @ 2.4 GHz Low Power Consumption: <5 μA @ +

PDF File Details

Part number:

MASWSS0115

Manufacturer:

Tyco Electronics

File Size:

149.59kb

Download:

📄 Datasheet

Description:

Gaas spdt switch. M/A-COM’s MASWSS0115 is a GaAs PHEMT MMIC single pole, double throw (SPDT) switch in a low cost, lead-free SC-70 (SOT-363) surface mo

MASWSS0115 Application

• Applications where very small size and low cost are required. Typical applications are dual band systems which require switching between small signa
