MASWSS0157 Datasheet, Switch, MA-COM

MASWSS0157 Features

• Switch
• Very Low DC Power Consumption: 100 µW
• Low Insertion Loss: 0.5 dB
• High Isolation: 25 dB up to 2 GHz
• Very High Intercept Point: 45 dBm IP3

PDF File Details

Part number:

MASWSS0157

Manufacturer:

MA-COM

File Size:

605.71kb

Download:

📄 Datasheet

Description:

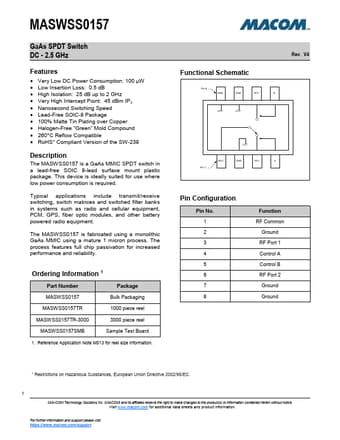

Gaas spdt switch. The MASWSS0157 is a GaAs MMIC SPDT switch in a lead-free SOIC 8-lead surface mount plastic package. This device is ideally suited for

MASWSS0157 Application

• Applications include transmit/receive switching, switch matrices and switched filter banks in systems such as radio and cellular equipment, PCM, GPS
