MASWSS0157 Datasheet, Switch, Tyco Electronics

MASWSS0157 Features

• Switch
• Very Low DC Power Consumption: 100 µW Low Insertion Loss: 0.5 dB High Isolation: 25 d

PDF File Details

Part number:

MASWSS0157

Manufacturer:

Tyco Electronics

File Size:

193.26kb

Download:

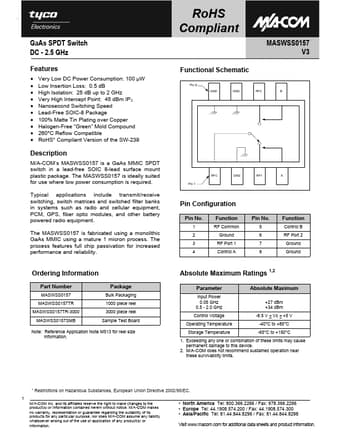

📄 Datasheet

Description:

Gaas spdt switch. M/A-COM’s MASWSS0157 is a GaAs MMIC SPDT switch in a lead-free SOIC 8-lead surface mount plastic package. The MASWSS0157 is ideally s

MASWSS0157 Application

• Applications include transmit/receive switching, switch matrices and switched filter banks in systems such as radio and cellular equipment, PCM, GPS
