MD-108 Datasheet, mixer equivalent, MA-COM

MD-108 Features

  • Mixer
  • Low Cost
  • Conversion Loss: 7 dB Typical
  • Impedance: 50 Ohms Nominal
  • Maximum Input Power: 400 mW max. @ 25°C, Derated linearly to 85°C @ 3.2 mW/°C <

PDF File Details

Part number:

MD-108

Manufacturer:

MA-COM

File Size:

415.83kb

Download:

📄 Datasheet

Description:

Double-balanced mixer. Transformers convert the LO and RF paths to balanced lines connecting to a low barrier, Schottky diode ring quad. These transformers

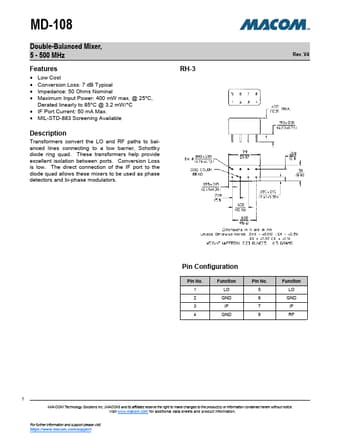

Datasheet Preview: MD-108 📥 Download PDF (415.83kb)
Page 2 of MD-108 Page 3 of MD-108
