MD-149

Double-Balanced Mixer

MD-149 Features

* Over Two-Decade Frequency Range

* Conversion Loss: 6 dB Typical Midband

* LO-RFIsolation: 40 dB Typical Midband

* Fully Hermetic Package

* Impedance: 50 Ohms Nominal

* Maximum Input Power: 300 mW Max, Derated to 85°C @ 3.2 mW/°C

* IF Port Current: 50 mA Max.

* MIL-S

MD-149 General Description

Transformers convert the LO and RF paths to balanced lines connecting to a medium barrier, Schottky diode ring quad. These transformers help provide excellent isolation between ports. Conversion loss is low. The direct connection of the IF port to the diode quad allows these mixers to be used as pha.

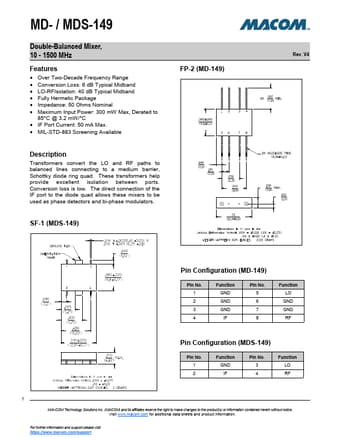

MD-149 Datasheet (477.30 KB)

Preview of MD-149 PDF

Datasheet Details

Part number:

MD-149

Manufacturer:

MA-COM

File Size:

477.30 KB

Description:

Double-balanced mixer.
